No Guessing. Just Reliable Readings!

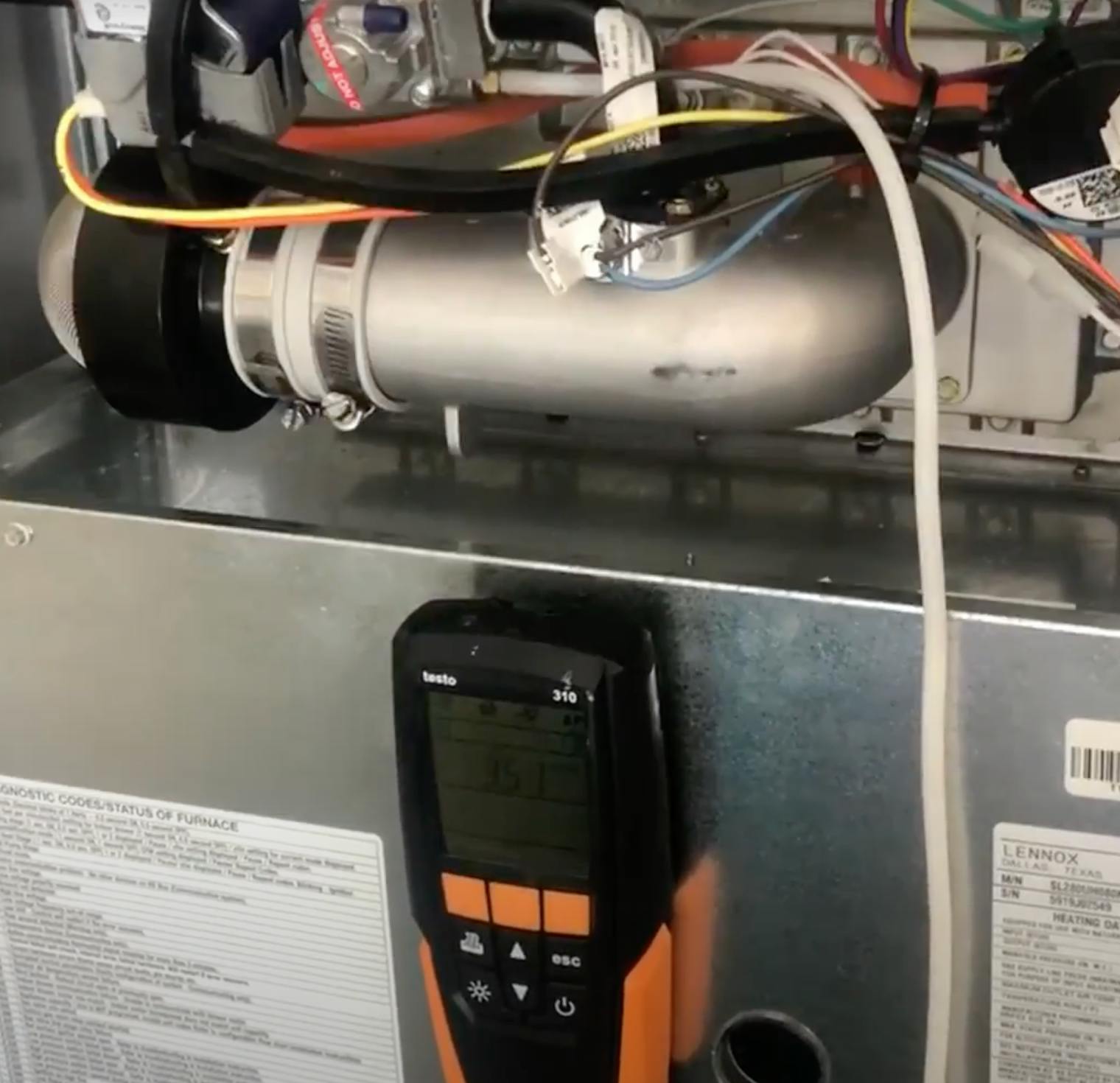

“ Works well for residential systems, able to quickly tune furnaces and boilers for optimal AFUE. I routinely get 83-86% out of standard 80% furnaces after using this tool.” - Augustin T.

Why Get Our Residential Combustion Analyzer Kit?

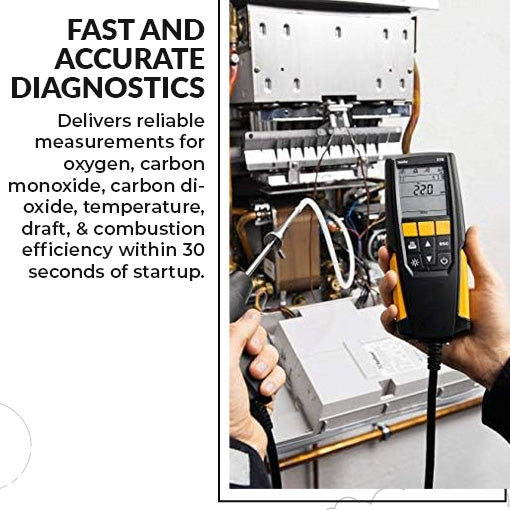

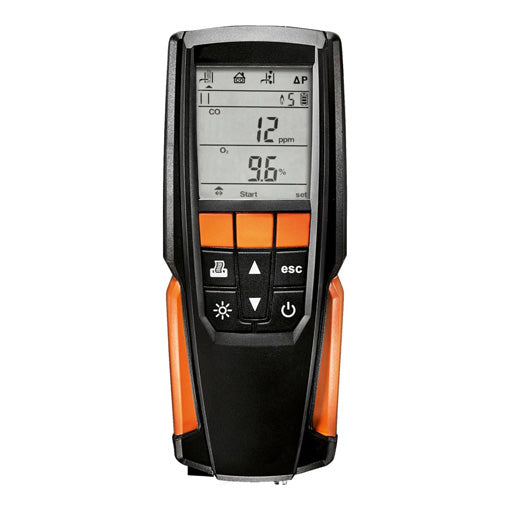

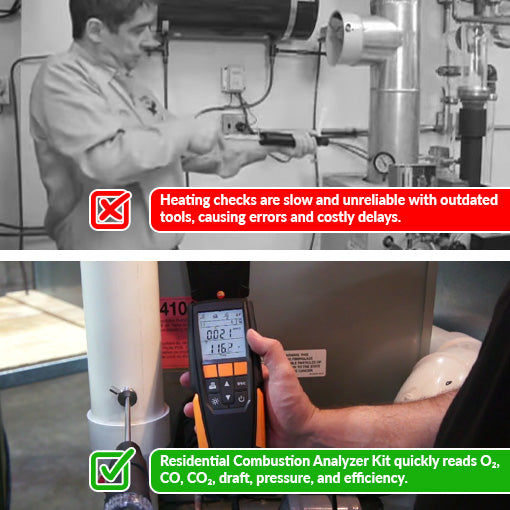

✅Fast, Accurate Testing: Unreliable data leads to risky repairs. This analyzer gives highly accurate results across multiple metrics, including CO, O₂, draft, and combustion efficiency. That means fewer retests, better tuning, and safer systems. Instead of flipping through menus or waiting on single numbers, the 5-line display puts the full picture in front of you. You see everything you need at once and in real time.

✅Consistent Readings: The sensors are engineered to hold calibration longer and give consistent readings in tough field conditions. This means accurate diagnosis every time, even when working fast.

Diagnosis:

• Dangerous when O₂ falls below 19.5%

• Dangerous when CO exceeds 50 ppm

• Dangerous when CO₂ exceeds 5,000 ppm

✅ Versatile Fuel Support: Whether you’re testing gas, oil, wood, or biomass systems, this tool adapts without losing precision. It’s built for modern homes and varied equipment, giving you dependable results across the board.

📓FREQUENTLY ASKED QUESTIONS

Q: Can this analyzer measure carbon monoxide?

A: Yes, this combustion analyzer can measure carbon monoxide.

Q: What is the measuring range for CO?

A:  The measuring range for CO (carbon monoxide) is 0 to 4000 ppm. Users must understand that exposure to CO levels above 50 ppm can become hazardous, with risks increasing sharply as concentrations rise.

⚙️ Specifications:

• Color: Black and Orange

• Item Weight: 5.42 lbs.

• Material: Stainless Steel and Plastic housing

• Temperature measuring range(K TC): -4° to 212 °F / -20 to +100 °C

• Temperature measurement accuracy: ±2 °F / ±1 °C

• Temperature measuring range (J TC): 32° to 752 °F / 0 to +400 °C

• Temperature measurement accuracy: ±1.8 °F (32° to 212 °F) / ±1 °C (0 to +100 °C); ±1.5 % of mv (> 212 °F) / ±1.5 % of mv (> 100 °C)

• O2 measuring range: 0 to 21 Vol.%

• O2 measurement accuracy: ±0.2 Vol.%

• Draft measuring range: -8 to +8 InH₂O / -20 to +20 hPa

• Draft measurement accuracy: ±0.01 InH₂O (-1.20 to +1.20 InH₂O) / ±0.03 hPa (-3.00 to +3.00 hPa) / ±1.5 % of mv (Remaining Range)

• Efficiency measuring range (calculated): 0 to 120 %

• Flue Gas loss measuring range: 0 to 99.9 %

• CO2 calculation measuring range: 0 to CO₂ max (Display range)

• CO2 calculation accuracy: ±0.2 Vol.%

• Pressure measuring range: -16 to +16 InH₂O / -40 to +40 hPa

• Pressure measurement accuracy: ±0.2 InH₂O / ±0.5 hPa

• CO and ambient CO measuring range: 0 to 4000 ppm

• CO ambient CO measurement accuracy: ±20 ppm (0 to 400 ppm) /±5 % of mv (401 to 2000 ppm) /±10 % of mv (2001 to 4000 ppm)

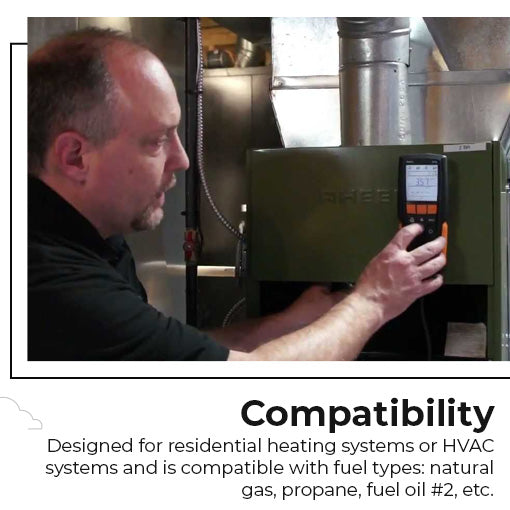

• Compatibility: Designed for residential heating systems or HVAC systems and is compatible with fuel types: natural gas, propane, fuel oil #2, etc.

• Product dimensions: 7.92"D x 3.27"W x 1.73"H

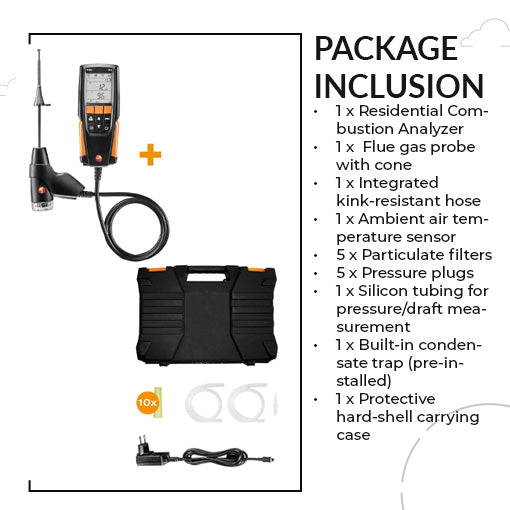

📦Package Inclusions:

• 1 x Residential Combustion Analyzer

• 1 x  Flue gas probe with cone

• 1 x Integrated kink-resistant hose

• 1 x Ambient air temperature sensor

• 5 x Particulate filters

• 5 x Pressure plugs

• 1 x Silicon tubing for pressure/draft measurement

• 1 x Built-in condensate trap (pre-installed)

• 1 x Protective hard-shell carrying case
