Reliable Pressure Testing!

I bought this to annually hydrostatically test the boiler on my steamboat. I bought this pump 2 years ago. It has not failed me and it is much easier to set up than the hand pump I have on the boat. –Tim

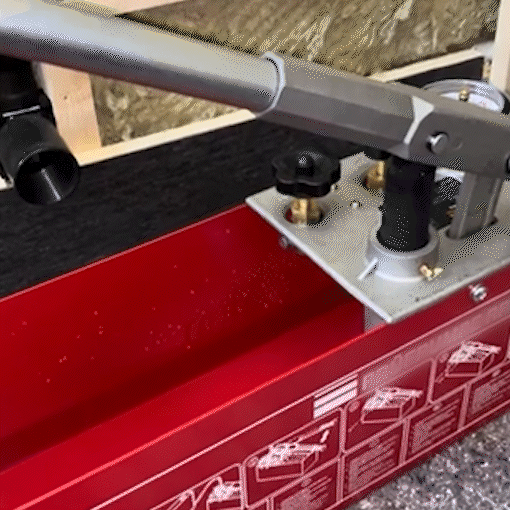

Why Buy the Hydrostatic Pressure Test Pump?

✅Primary Function: The hydrostatic pressure test pump is designed for testing pressure in pipelines, pressure containers, irrigation systems, and firefighting equipment. It provides accurate and reliable pressure readings, with a testing range of 0-50 bar, using a manual and portable pump system with a 12L capacity.

✅Durability and Materials: Constructed from superior steel with a rust-resistant electroplated surface, it is built to withstand low temperatures. The thick-walled, seamless water tank prevents leaks, and the handle and hose are reinforced for high-pressure endurance.

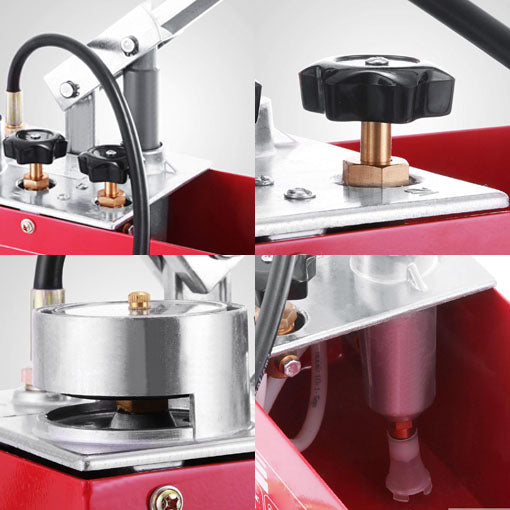

✅Precision Measurement: Featuring a twin-valve system and a three-unit gauge (bar/psi/MPa), the pump ensures precise pressure control and readings. The dual copper check valves improve accuracy and facilitate efficient pressure management.

📝 FREQUENTLY ASKED QUESTIONS

Q: What applications can this be used for?

A: The Hydrostatic Pressure Test Pump is ideal for testing pressure in various systems, including pipelines, heating installations, air-conditioning units, solar power systems, and firefighting equipment. It helps detect leaks and ensure proper pressure levels for safety and efficiency.

Q: How does the twin-valve system improve accuracy in pressure testing?

A: The twin-valve system includes two copper check valves that control the return flow of water, allowing for more precise adjustments and preventing pressure drops. This results in accurate measurements and stable pressure levels during testing.

⚙️ Specifications:

• Material: Aluminum
• Pressure Range: 0-50 bar/5MPa/725 psi
• Suction Per Stroke: 45 ml
• Connecting Inch: R 1/2"
• Container Volume: 12 L/3.17 gallon
• Dimension (L*W*H): 650x165x260 mm/25.59"x6.5"x10.24"
• Weight: 8 kg/17.64 lbs
• Package Inclusions: 1 x Hydrostatic Pressure Test Pump (Includes a manual)
