Complete Door Hinge Installation Template Kit

Save 20%



Price:
$79.99 $99.99

Description

One Kit Fits All Door Sizes!

“It saved me a lot of time and the home owner spent a bit of money for changing the swing on an (already installed) unit. Rather than removing the whole unit and ordering another jamb I used this little jewel to change the direction of the swing. It worked great.- Ronnie C.

Why Get Our Complete Door Hinge Installation Template Kit?

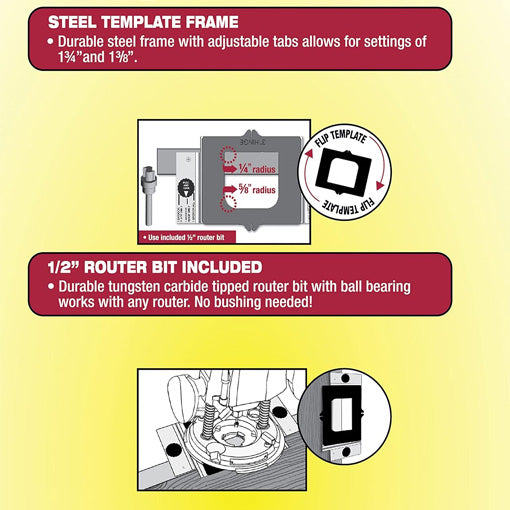

✅Versatile Fit: Most standard jigs are limited to just one door size, requiring multiple setups or specialized tools. The adjustable cams in the HingeMate 300 allow you to easily adjust for both 1-3/8” and 1-3/4” thick doors.

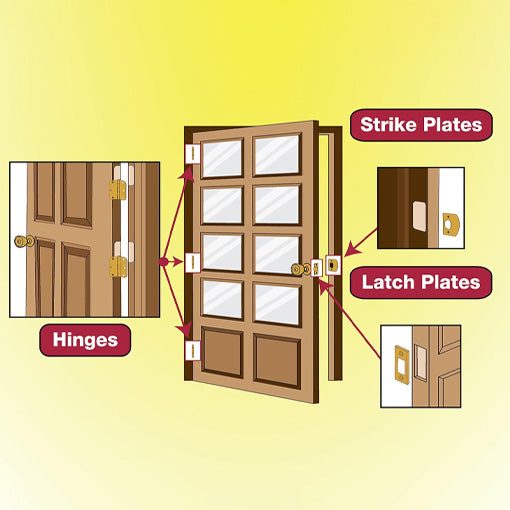

✅Perfect Alignment: The Complete Door Hinge Installation Template Kit includes 5 hinge templates (2-1/2”, 3”, 3-1/2”, 4”, and 4-1/2”) and 3 templates for strike and latch plates. These templates ensure that you can install hinges and latch plates in the correct position every time.

✅User-friendly: The drop-in template design with clearly marked templates simplifies the process, allowing you to get started quickly. You don’t need to be a professional to achieve accurate, clean cuts on your doors and jambs.

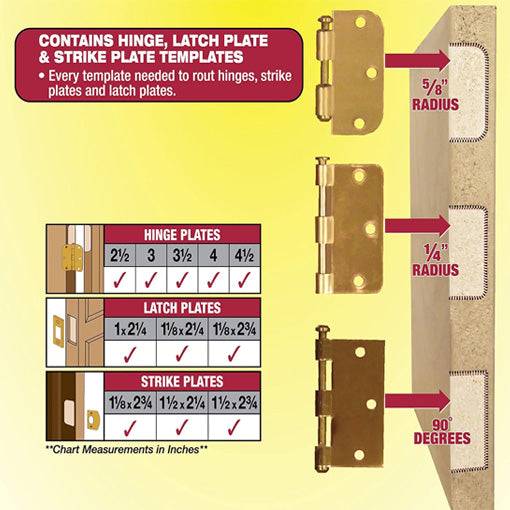

✅Durable and Precise: The templates that rotate to create 5/8" or 1/2" radius mortises. This added flexibility ensures you can achieve the correct hinge fit for any project, whether you're working on a new door or a replacement.

🌟HOW TO USE

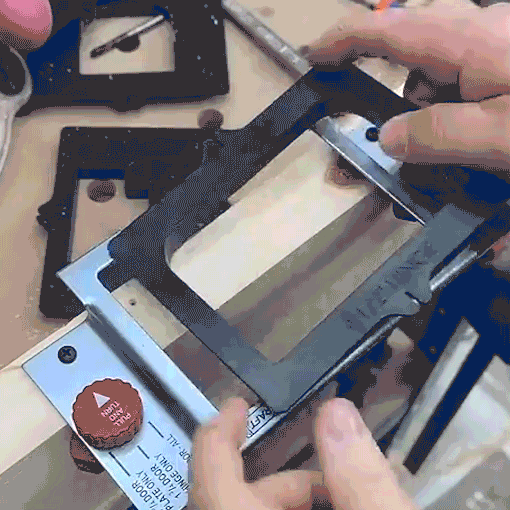

  • First, select the desired template and adjust the cams for your door thickness.

  • Next, position the frame on the door or jamb, and lock it into place.

  • Lastly, use the router with the carbide tip to cut clean, level mortises for your hinges, strike, or latch plates.

📓FREQUENTLY ASKED QUESTIONS

Q: Will this work with both new and old doors?

A: Yes, this kit is designed to fit both new installations and repairs on existing doors.

Q: How easy is it to adjust for different door thicknesses?

A: The adjustable cams make it simple to switch between 1-3/8” and 1-3/4” door settings, ensuring a perfect fit each time.

⚙️ Specifications:

  • Color: Black

  • Item Weight: 1.77 lbs.

  • Material: Steel and Plastic

  • Hinge Sizes: 2.5in to 4.5 in

  • Door Thickness Settings: 1-3/4” and 1-3/8”

  • Compatibility: Compatible with hinges ranging from 2-1/2” to 4-1/2” with templates included for various hinge sizes.

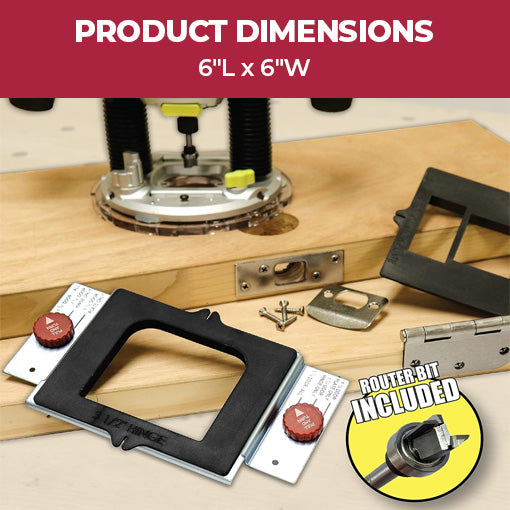

  • Product dimensions: ‎6"L x 6"W

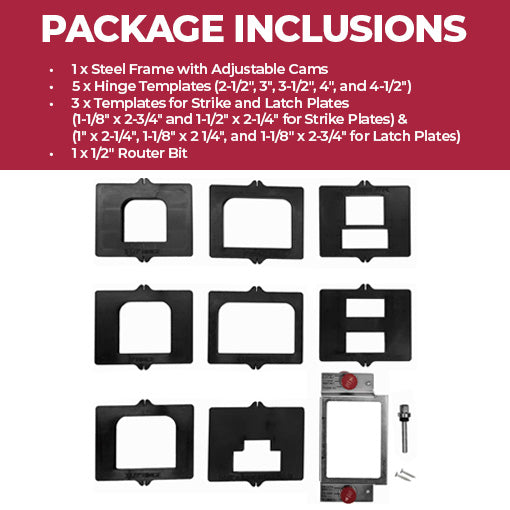

📦Package Inclusions:

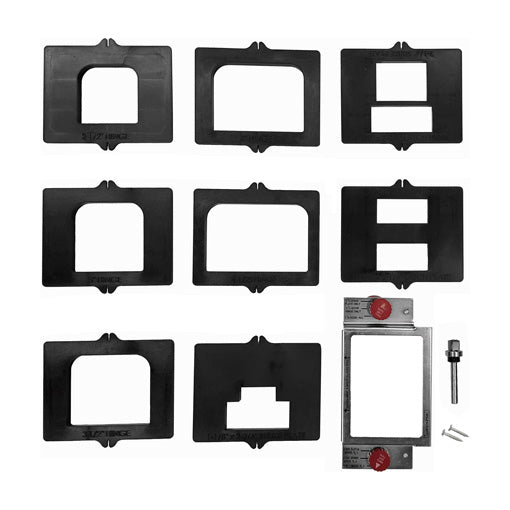

  • 1 x Steel Frame with Adjustable Cams

  • 5 x Hinge Templates (2-1/2", 3", 3-1/2", 4", and 4-1/2")

  • 3 x Templates for Strike and Latch Plates (1-1/8" x 2-3/4" and 1-1/2" x 2-1/4" for Strike Plates) & (1" x 2-1/4", 1-1/8" x 2 1/4", and 1-1/8" x 2-3/4" for Latch Plates)

  • 1 x 1/2" Router Bit



Payment & Security

American Express Diners Club Discover Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

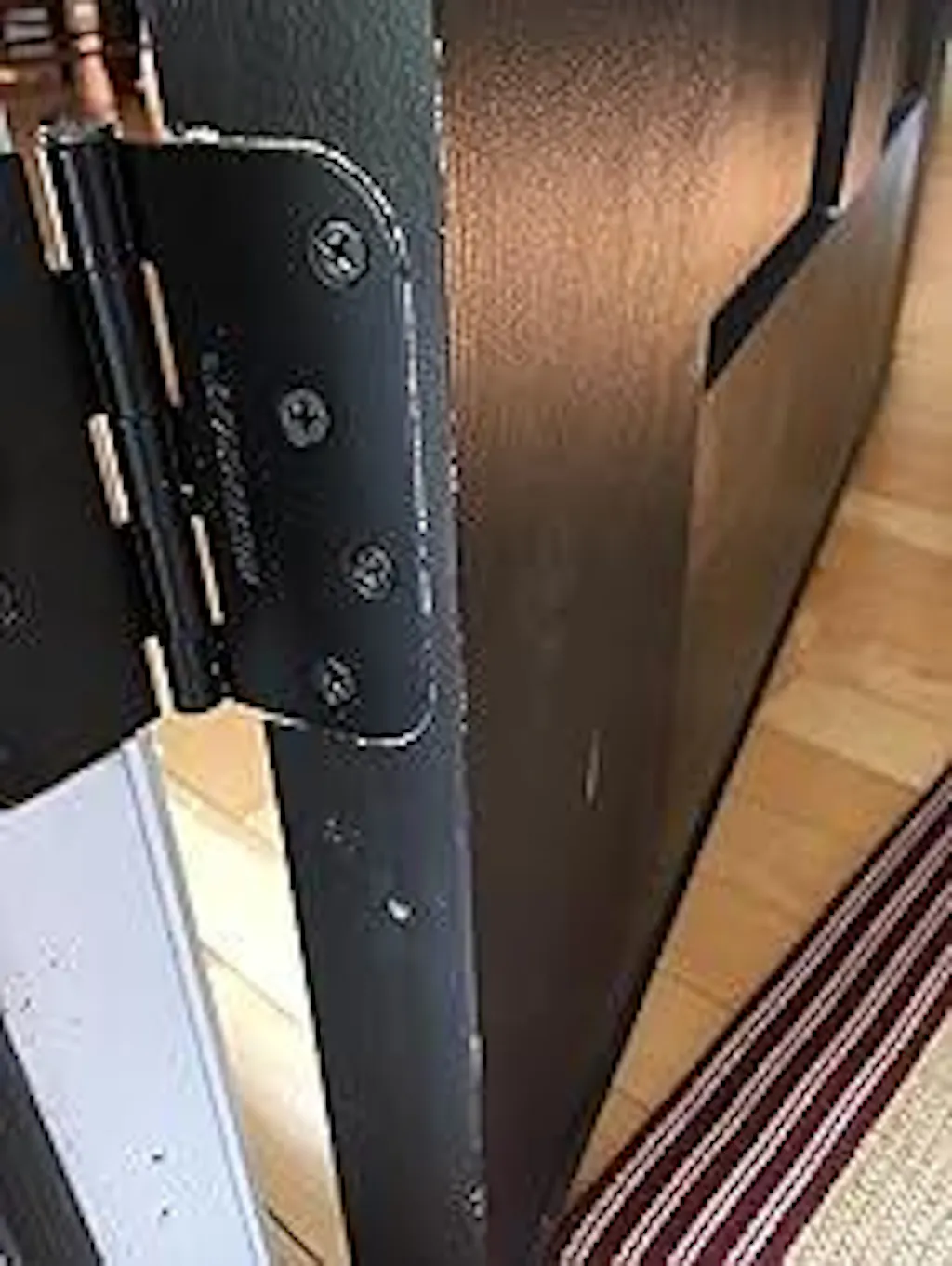

E
Ellen P.
Perfect for Retrofit Door Work

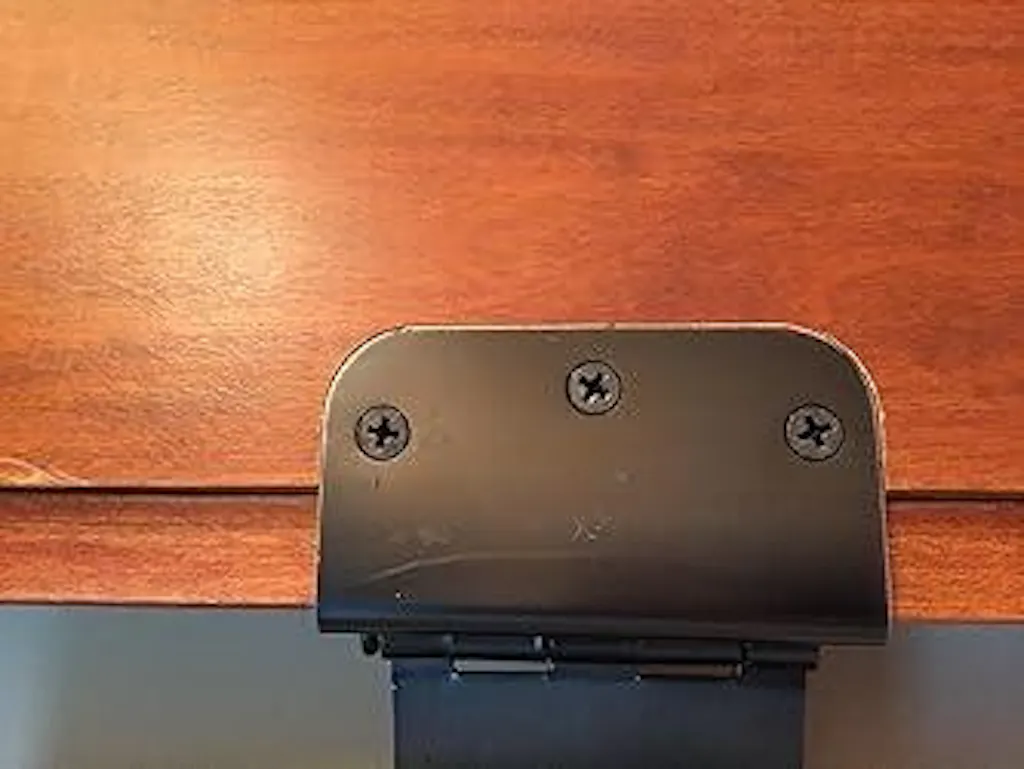

Worked great for changing swing on an existing frame. Required a little customization, but I got clean mortises and saved money!

C
Cheryl D.
Saved Time and Money

This tool made changing the swing direction so easy without tearing out the old unit. Small tweak needed, but it worked perfectly in the end!

V
Victor R.
Great Value and Does the Job

Used this to change door direction without buying a new jamb. Removed tabs and made my own guide—resulted in perfect hinge mortises!

M
Marcus V.
Great Solution for Door Swing Change

Saved both time and cost. Modified it slightly for my trimmed door, and it cut four perfect hinge slots. Definitely worth it!

B
Brittany K.
Made the Job Easy and Affordable

This tool saved me a lot of time and cost. Minor modification needed for pre-trimmed frames, but once set, it worked beautifully.
