Automatically Open Your Gate With This!

Sick of having to get out of the car just to open your gate? And worse, in the rain? Or maybe you tend to forget to close your gate before leaving? Or is that scratch on your rear fender cause you backed up into your gate?

Sounds like you could use an Automatic Swing Gate Opener!

Why do you need an Automatic Swing Gate Opener?

A durable swing gate opener will not only bring your home or homestead more security but will greatly increase its curbside appeal.

This Automatic Swing Gate Opener comes with everything you need to install it yourself except for the battery. It’s designed for the 'Do-It-Yourselfer' so installation is surprisingly simple.

This Automatic Swing Gate Opener was designed to last for a long time, even through harsh weather. Over are the days when you needed to get out of your car in the pouring rain in order to manually open your gate.

Why buy our Automatic Swing Gate Opener?

✅ Automatic: With a single push of a button on the remote, open and close your gate without leaving your car!

✅ Ideal for single gates: Used for gates not more than 12ft and 300 lbs, this gate opener is great for tighter security for lighter gates!

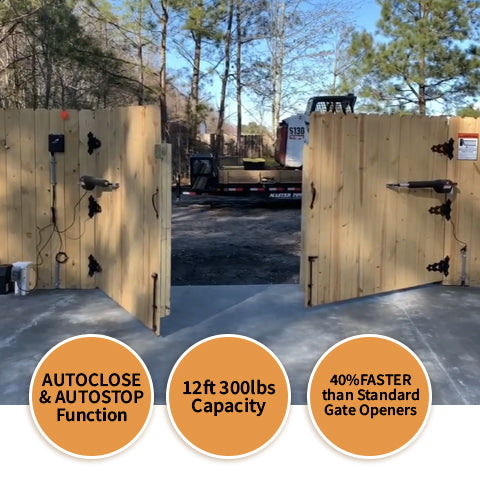

✅ Autoclose Function: This gate opener closes by itself within 2 minutes after you leave it open! Helpful for time when you’re in a rush!

✅ Autostop Function: An anti-collision system prevents the gate from hitting your rear fender if you ever happen to be too close to your gate when backing up!

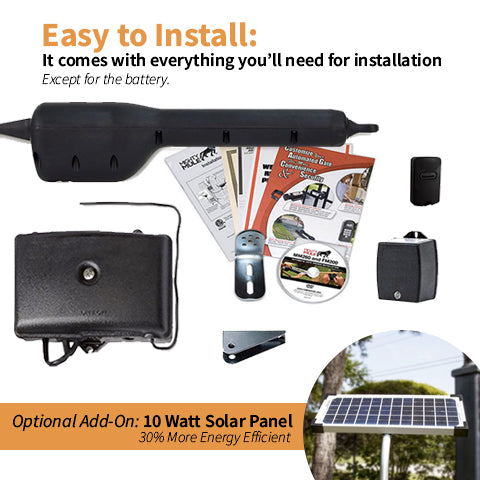

✅ Easy to Install: It comes with everything you’ll need for installation, making it ideal for the DIYer in you!

✅ Flexible: You can install this swing gate opener on a wide variety of gate types such as: chain link, tube, panel, vinyl and wood

✅ Versatile: This gate can be powered via a DC connection through the transformer, a battery or even buy it with a 10-watt solar panel, giving you a lot of options!

Frequently Asked Questions:

Q: What kind of gate can I fit this into?

A: This is compatible with any type of gate including chain link, tube, panel, vinyl and wood. As long as the gate does not exceed 12ft and 300 lbs.

Q: Can I still open this manually with the opener installed?

A: Yes! The gate can be opened or closed by removing the clevis pin on either the front or rear mount of the gate opener to take it off the bracket.

Q: Is this waterproof?

A: The durable casing prevents water from getting into the more senstive parts, as well as protects it from the elements. But if additional waterproofing is requires, you can make custom rubber seals or use O-rings to prevent water from getting in.

Specifications:

• Motor Voltage: DC 24V
• Motor Power: 30W
• Rated Current: 1.5A
• Actuator Speed: 0.63 in/s (16 mm/s)
• Max. Actuator Travel: 15.1" (385 mm)
• Gate Opening/Closing Time: approx. 15 seconds
• Max. Opening Angle: 90° - 110° depends on the installation mode
• Operation Range for the Remote Transmitter: 65’ (20 m)
• Frequency: 433.92 MHz, unique code per gate opener
• Working Temperature: -4°F to 122°F (-20℃~ +50℃)
• Sound Level: < 50 dB
• Protection Class: IP44 - Waterproof and Dustproof
• Dimension of the Arm (Actuator): 33.7 x 3.3 x 4.1" (855 x 84 x 104 mm)
• Dimension of the Control Box: 5.7 x 4.7 x 2.4" (145 x 120 x 60 mm)

Package Inclusions Per Variant:

Without Solar Panel

• 1 x Gate Opener Actuator (Arm), with a 5' 5-Conductor Cable per Arm
• 1 x Waterproof Control Box
• 1 x M12 Remote Control Transmitter
• 1 x TS24-U Adapter with a 4' cord
• 1 x Emergency Release Key
• 1 x Post Pivot Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
• 1 x PSO Part Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
• 1 x Full Set of Required Installation Hardware
• 2 x Warning Sign
• 1 x Detailed Installation Manual

With Solar Panel

• 1 x Gate Opener Actuator (Arm), with a 5' 5-Conductor Cable per Arm
• 1 x Waterproof Control Box
• 2 x 10W 24V Solar Panel
• 1 x TCS3 Solar Controller
• 1 x M12 Remote Control Transmitter
• 1 x TS24-U Adapter with a 4' cord
• 1 x Emergency Release Key
• 1 x Post Pivot Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
• 1 x PSO Part Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
• 1 x Full Set of Required Installation Hardware
• 2 x Warning Sign
• 1 x Detailed Installation Manual

You can never put a price on added security, which is why it’s great that it comes in such a convenient package like this Automatic Swing Gate Opener!

Designed for Homestead owners and DIY enthusiasts across the country, increase your security and save more time, and energy, get one NOW!
