Perfect Measurements Every Time

“I have 35 years in Collision and use Car-o-liner, this product is way better than anything and is an amazing quality for the insanely low price!! Very happy with this purchase!!” - Michael C.

Why Get Our Universal Measuring Tram Gauge?

✅Efficient: Accurate measurements are difficult without a precise gauge, causing misalignment. The Universal Measuring Tram Gauge accurately measures and aligns parts, making it ideal for car bodywork and construction. Its high-precision design enhances accuracy and ease in vehicle repairs.

✅Accurate: The tool offers high accuracy with a measurement error of less than 1 mm. When measuring small sizes within 900 mm, you don’t need a drawing rule—just use the slide rule based on the ranging point's position.

✅Convenient: The high-precision 2D measuring system is a cost-effective and practical tool for point-to-point measurements, commonly used in construction and machinery maintenance.

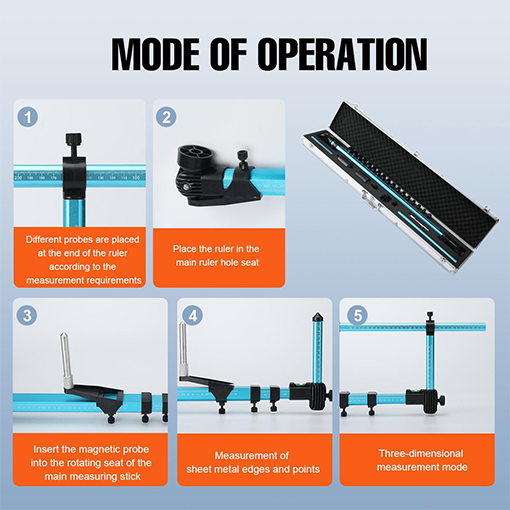

🌟HOW TO USE

1. The value read out at the left edge of the threaded probe holder is the distance between the probe and the probe at the end of the scale.

2. Put the magnetic probe into one end of the size to be measured, loosen the fastening bolt, and move the middle casing inside the main ruler, the value shown at the right end of the large casing of the main ruler is the distance between the magnetic probe and the probe at the end of the ruler.

3. Put the magnetic probe into one end of the size to be measured, loosen the fastening bolt, and move the middle casing inside the main ruler, when the middle casing extends to the end, the positioning pin will pop out, then pull out the small casing of the main ruler to measure the ruler. The value shown at the right end of the middle casing of the main ruler is the distance between the magnetic probe and the probe at the end of the scale.

⚙️ Specifications:

• Color: Blue, Black

• Item Weight: 9.35 Pounds

• Material: Aluminum, Rubber

• Product dimensions:  40 x 8.5 x 3.75”

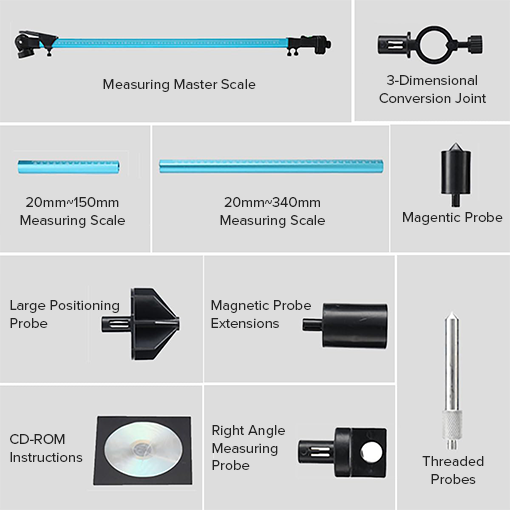

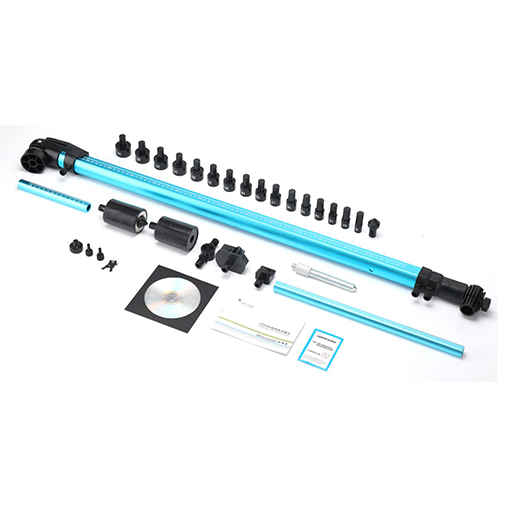

📦Package Inclusion

• 1 x Measuring Master Scale
• 1 x 3D Conversion Joint
• 1 x 20mm - 150mm Measuring Scale
• 1 x 20mm - 340mm Measuring Scale
• 1 x Magnetic probe
• 1 x Large positioning probe
• 1 x Magnetic probe extension
• 1 x Right Angle measuring probe
• Threaded probes
