Description
Essential Tool for Direct Injection Engines!
“Needed this tool to remove the fuel rail on a 3.6 direct injection GM engine. Needed to remove the fuel rail to replace the injectors. It was a little confusing since it comes with 2 types of hooks. Once I figured out which ones to use, it worked well.” - JEFF RICHARDSON
Why Get Our Injector Rail Assembly Remover Tool?
✅Convenient: Using the wrong tools can break, bend, or crack the injector rails, leading to costly repairs and delays. The Injector Rail Assembly Remover Tool is designed to safely remove the injector rail assembly on GM vehicles with 27-214 Direct Injection Engines. It's an essential tool for technicians working on Cadillac, Saturn, Pontiac, and Chevrolet models with this engine type.
✅Easy to use: This tool is designed to safely remove the direct injection fuel rail without causing any damage. The injector and rail assembly should be removed straight to avoid damaging the injector bore in the cylinder head or the rail mount.
✅Easier Work: Installs in place of the mounting bolts and reaches under the injector rail at each mount point. The hand wheels on the tool are positioned at each mount location.
📓FREQUENTLY ASKED QUESTIONS
Q: Is there a compatibility list?
A:
Q: What are other reminders for compatibility?
A: If you are working on a 5.3L or 6.2L, you will need a quantity of 2 sets.
🌟HOW TO USE
Step 1:

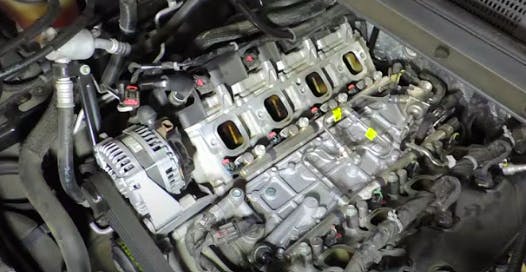

Cut the plastic tie strap. Disconnect the fuel pressure sensor connector. Remove the fuel pressure sensor.
Step 2:
Remove the bank 2 fuel rail fasteners using the Injector Rail Assembly Remover Tool.
Step 3:
Remove the bank 1 fuel rail fasteners for clearance.
Step 4:

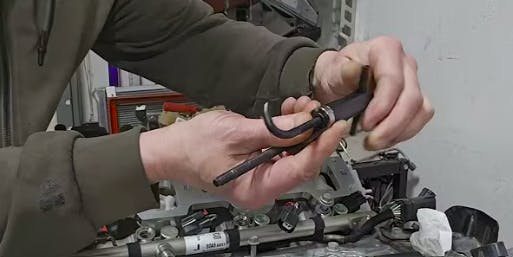

Use the Injector Rail Assembly Remover Tool hook to raise the fuel rail as an assembly. Once the fuel rail is free, remove the tool.
Step 5:
Slide the fuel rail forward by about 1 inch (25.4 mm) to clear the center injector bore.
Step 6:
Hand-tighten the two outer fuel rail fasteners to seat the injectors. Hand-tighten the remaining fasteners, then tighten all fasteners to 25 Nm (18 lb-ft) in the proper sequence.
Step 7:
Tighten the fuel pressure sensor to 33 Nm (25 lb-ft). Connect the fuel pressure sensor's electrical connector and secure it with a new plastic zip tie. Install the fuel feed intermediate pipe.
⚙️ Specifications:
-
Color: Silver, Black
-
Item Weight: 1.1 pounds
-
Product dimensions: 5.12 x 4.41 x 1.3 inches
-
Package Inclusion: 1 x Injector Rail Assembly Remover Tool
