Effortless Setup, Perfectly Aligned Holes!

“This drill guide made assembling my 3D printer frame so much easier. The holes are perfectly aligned, and it’s super sturdy.” - Rowan H.

Why Get Our Aluminum Extrusion Profile Drill Guide?

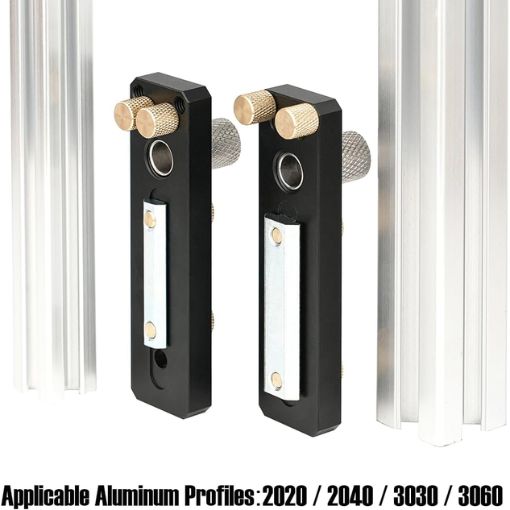

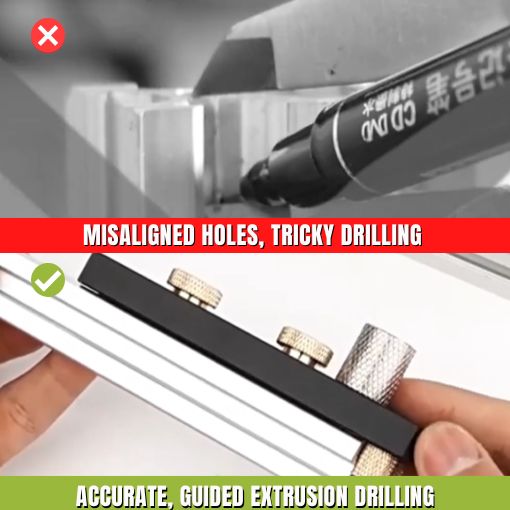

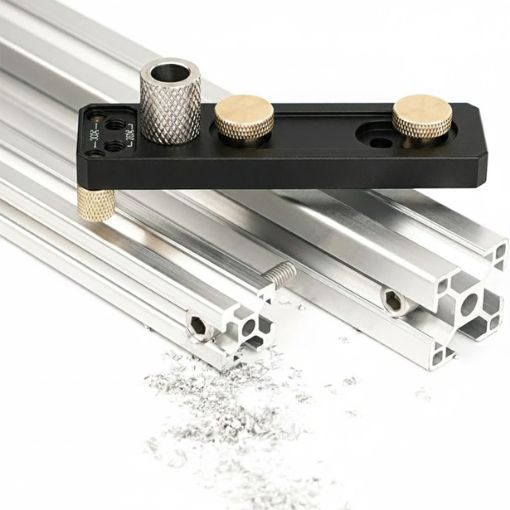

✅Effortless and Accurate Setup: Many users struggle with drilling freehand that slip or fail to maintain accuracy. This drill guide fits securely onto 2020, 2040, 3030, and 3060 European standard aluminum profiles, providing a stable platform for precise drilling. Compatible with 20x20mm, 20x40mm, 30x30mm, and 30x60mm sizes, it’s perfect for DIY furniture, 3D printers, lab equipment, and industrial projects.

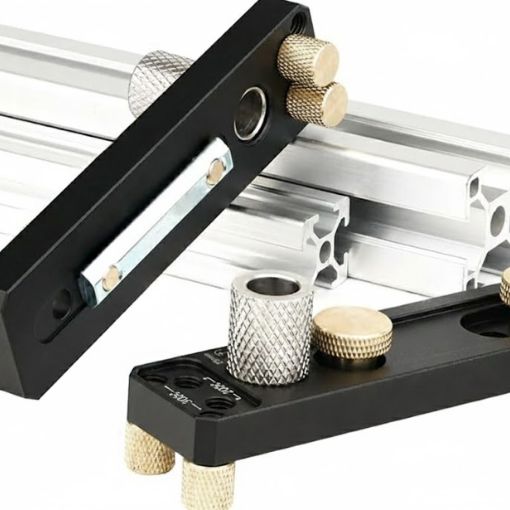

✅Durable and Reliable Build: Constructed from CNC-machined aluminum alloy and brass with anodized finish, this guide resists wear and corrosion while maintaining long-term precision. Laser-etched markings ensure accurate drill positioning for consistent, clean holes every time.

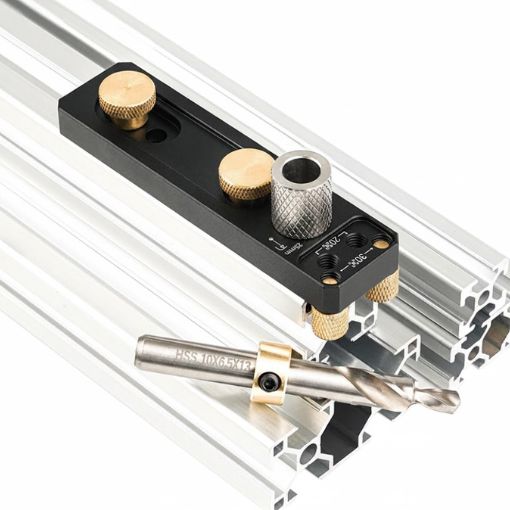

✅Professional-Quality Drilling: Holds the drill perfectly aligned for precise 6mm access holes, saving materials and improving project quality. The included M6 countersunk step drill bit and secure guide design allow smooth drilling across multiple profile series.

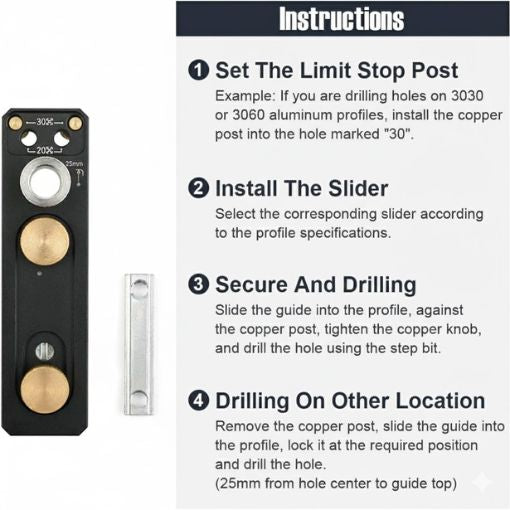

🌟HOW TO USE

• First, set the limit stop post. If you are drilling holes on 3030 or 3060 aluminum profiles, install the copper post into the hole marked "30".

• Next, install the slider. Select the corresponding slider according to the profile specifications.

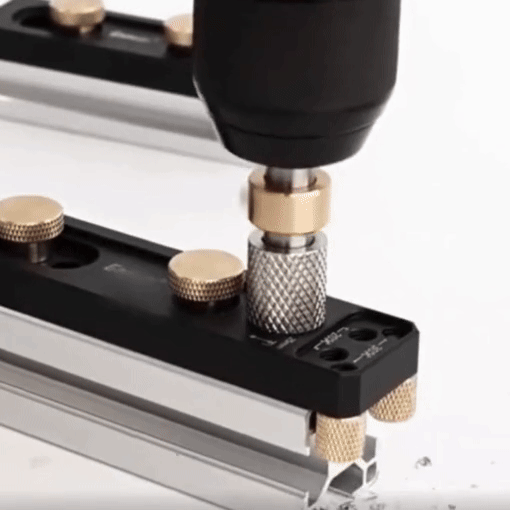

• Then, slide the guide into the profile, against the copper post, tighten the copper knob, and drill the hole using the step bit.

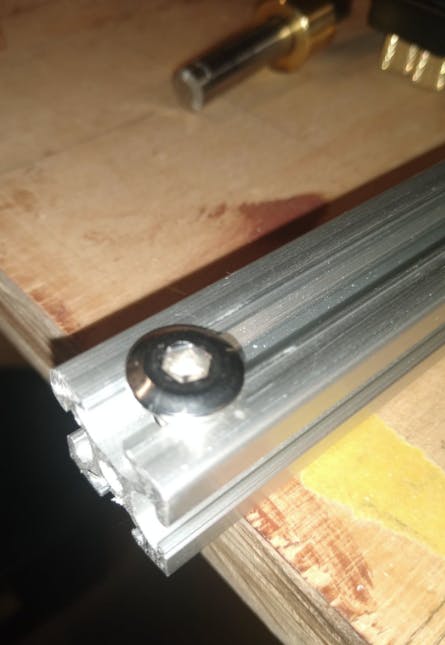

• Lastly, remove the copper post, slide the guide into the profile, lock it at the required position and drill the hole (25mm from hole center to guide top).

📓FREQUENTLY ASKED QUESTIONS

Q: Which aluminum profiles is this drill guide compatible with?

A: It is compatible with 2020, 2040, 3030, and 3060 European standard aluminum profiles. Supported profile sizes include 20x20mm, 20x40mm, 30x30mm, and 30x60mm.

Q: What drill bit is included, and can it drill without damaging the aluminum?

A: The package includes an M6 countersunk step drill bit, designed for smooth, precise drilling without damaging aluminum profiles. It allows efficient chip removal with light feed.

Q: How does this drill guide improve drilling accuracy?

A: The guide snaps securely onto the profile slot, providing a stable platform for vertical drilling. Laser-etched markings ensure precise positioning, preventing crooked or misaligned holes.

⚙️ Specifications:

• Color: Black

• Item Weight: ‎0.66 lbs

• Material: Aluminum Alloy & Brass

• Process: CNC-Machined

• Access Hole Size: 6MM

• Compatibility: Works with 20x20mm, 20x40mm, 30x30mm, 30x60mm Aluminum Profiles

• Product Dimensions: ‎‎6.46 x 5.67 x 2.24 Inches

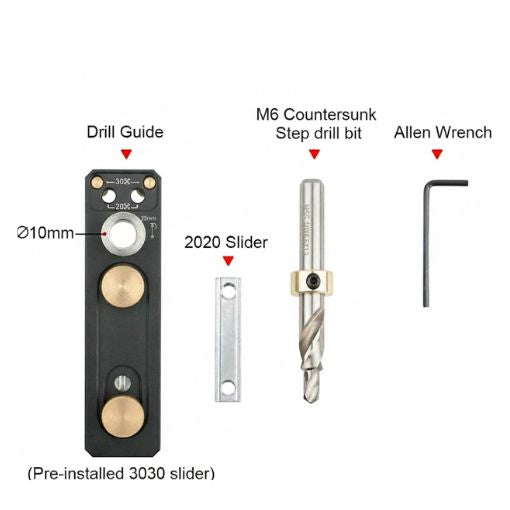

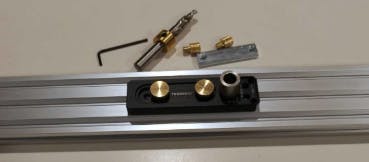

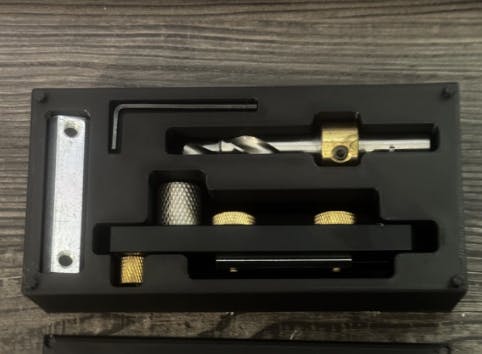

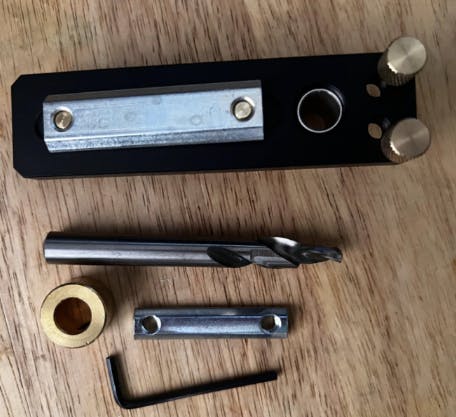

📦Package Inclusions:

• ‎1 x 2020 Slider

• 1 x Allen Wrench

•  1 x M6 countersunk step drill bit
